300W Laser Source 3IN1 Spot Beam Wash Moving Head Light
$0.00
This high-output 260W laser moving head beam fixture is engineered for large-scale concerts, touring productions, TV studios, and high-end nightclub applications. Featering an ultra-narrow 0.6° beam and massive 13,000-lumen output, it delivers unparalleled aerial effects and punchy mid-air visuals. The robust magnesium alloy construction combined with advanced optical engineering makes it a reliable workhorse for professional lighting designers seeking precision, speed, and durability.
- Product Details
- Technical Specification
- Video

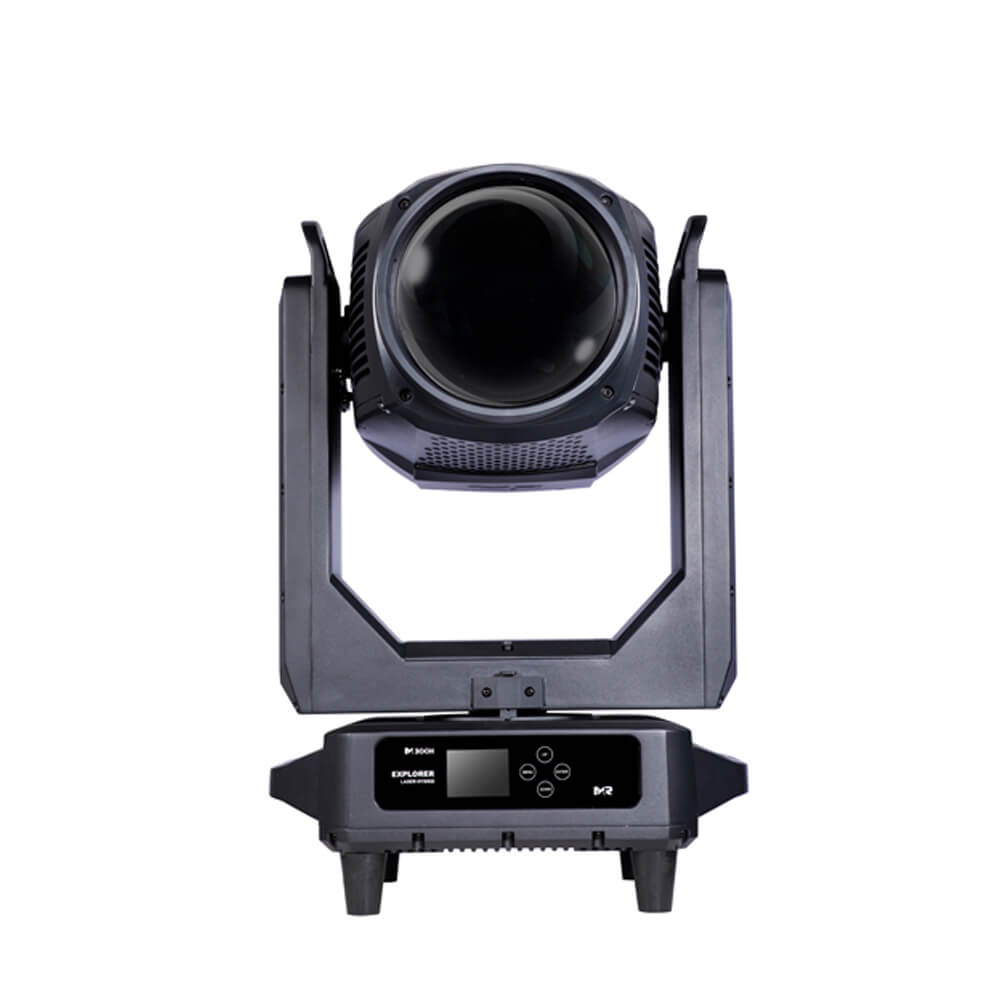

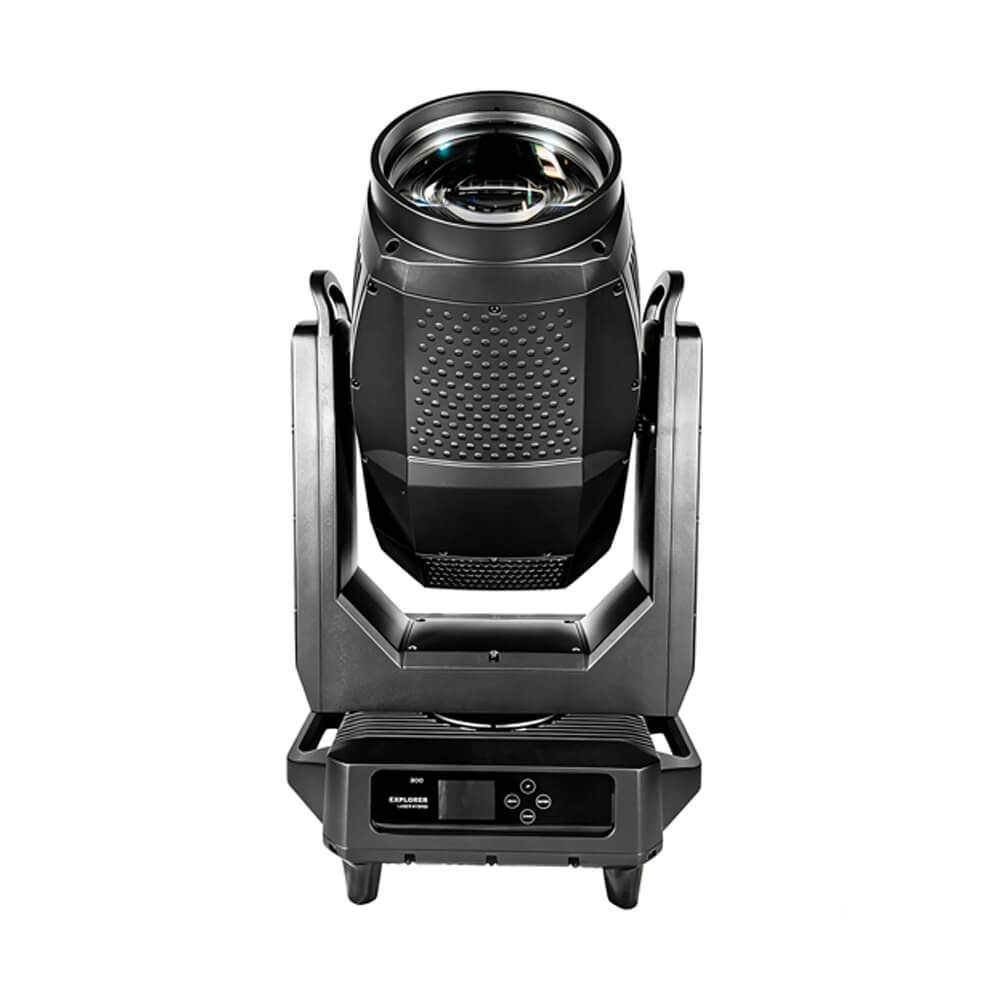

Bright Top LZ300C: 300W IP65 Pure Laser 3-in-1 Spot/Beam/Wash Hybrid Moving Head
Powered by a high-output 260W solid-state pure white laser diode engine and an oversized 166mm frontal optical lens, the Bright Top LZ300C delivers a piercing 0.6° ultra-narrow solid beam and zooms seamlessly to a 35° wide-coverage wash, setting a new benchmark for outdoor touring concerts, stadium productions, and mega festivals.
Engineering Highlights & Creative Effects Engine
Piercing 0.6 deg; Solid Laser Beam
Equipped with a 166mm ultra-clear front optic and high-collimation laser diode, delivering 13,000 lumens of ultra-dense aerial energy visible for miles even under intense stadium ambient lighting.
CMY Mixing & Dual Gobo Wheels
Smooth CMY color mixing system + 19 dichroic colors wheel, paired with 10 rotating indexable glass gobos and 35 static high-definition metal gobos for endless mid-air morphing.
Multi-Facet Prisms & Dual Frost
Comprehensive prism stack (4-facet/6-facet linear + 3/4/5/6/8/16-facet circular) with bi-directional rotation. Integrated heavy + light frost filters transform the beam into a smooth theatrical wash.
Infinite 360 deg; Continuous Pan Movement
High-precision 16-bit 3-phase stepping motors enable seamless, non-stop continuous 360 deg; pan spin and rapid 270 deg; tilt sweeps. Fully supports ArtNet, sACN, RDM, and battery-buffered offline addressing.
Touring-Grade Construction & IP65 Protection
Precision magnesium alloy chassis with flame-retardant engineering plastic and anti-corrosion salt-spray coating ensures ultimate road-ready durability at only 30 kg net weight.
Multi-zone internal temperature sensors with variable-speed silent fans maintain the laser diode at its optimal operating temperature, extending emitter lifespan past 20,000 hours.
Full silicone gasket sealing protects sensitive optical and electronic chambers from heavy rain, sandstorms, and dust accumulation, drastically lowering annual rental maintenance costs.
Backed by BTLProlight 2-year free parts warranty and lifetime technical support with plug-and-play modular replacement assemblies dispatched globally.
Target Applications & Console Fixture Profiles
* Complete personality libraries available for GrandMA2 / GrandMA3, Avolites Titan, ChamSys MagicQ, and Obsidian ONYX.
Request a Competitive Factory Quotation & Demo Video
Contact BTLProlight technical sales team for wholesale pricing, customized flight case packages, DMX channel charts, and prompt sample shipment.
Model: Bright Top LZ300C
Product name: 300W Laser Source 3IN1 Spot Beam Wash Moving Head Light
Product code: 2502
Bright Top LZ300C: 300W IP65 Pure Laser 3-in-1 Spot, Beam & Wash Moving Head Light
Engineered for outdoor mega-concerts, stadium tours, and landmark aerial light shows. Combines a 260W solid-state pure white laser engine with an Ø 166mm collimating front lens, 0.6 deg-35deg; motorized linear zoom, CMY color mixing, infinite 360° pan rotation, and IP65 heavy-duty magnesium alloy housing.
Key Engineering & Performance Highlights
Piercing 0.6 deg; Ultra-Narrow Solid Laser Beam
Equipped with an oversized Ø 166mm frontal optical lens and high-collimation 260W laser source, producing 13,000 lumens of ultra-dense parallel light energy with zero dispersion across extreme distances.
0.6-35deg; Motorized Linear Zoom & Dual Frost
Transitions seamlessly from an ultra-punchy 0.6 deg; aerial beam to an ultra-wide, soft 35 deg; wash. Dual independent heavy and light frost filters deliver a perfectly homogenized theatrical field distribution.
CMY Color Mixing & Dual Dynamic Gobo Wheels
Features smooth CMY linear color mixing + 19 dichroic colors wheel, paired with 10 rotating indexable glass gobos and 35 static high-definition aerial gobos for breathtaking mid-air visual morphing.
Infinite 360 deg; Continuous Pan & Silent High Speed
Advanced 16-bit 3-phase drive motors enable non-stop continuous 360 deg pan rotation and rapid 270 deg tilt sweeps with whisper-quiet positioning and automatic repositioning correction.
Multi-Plane Prisms & 3D Matrix Visual FX
Equipped with 4-facet & 6-facet linear prisms plus 3/4/5/6/8/16-facet circular prisms with bi-directional high-speed rotation, creating rich kaleidoscopic textures and expansive aerial fans.
True IP65 Heavy-Duty Magnesium-Aluminum Housing
Precision die-cast magnesium alloy chassis with marine-grade salt spray coating. Fully sealed optical path prevents rain, dust, and fog fluid infiltration, weighing only 30 kg for easy truss rigging.
Technical Specifications
Need Factory Wholesale Quotation or Demo Video?
Contact BTLProlight senior sales engineering team for direct pricing, DMX channel profiles, and fast sample delivery.
·This high-output 260W laser moving head beam fixture is engineered for large-scale concerts, touring productions, TV studios, and high-end nightclub applications. Featering an ultra-narrow 0.6° beam and massive 13,000-lumen output, it delivers unparalleled aerial effects and punchy mid-air visuals. The robust magnesium alloy construction combined with advanced optical engineering makes it a reliable workhorse for professional lighting designers seeking precision, speed, and durability.
Features
· Extreme Brightness: Utilizes a powerful 260W laser source to produce a sharp, parallel beam with an output of 13,000 lumens, ensuring visibility even in daylight conditions.
· Versatile Effects Engine: Equipped with dual gobo wheels (10 rotating + 35 static), CMY color mixing, and a comprehensive prism system (including 3-facet to 16-facet options) for endless creative possibilities.
· Precision Movement: Offers infinite 16-bit pan rotation and a wide 270° tilt range, allowing for smooth, high-speed movements and complex positioning.
· Rugged & Reliable: Constructed from lightweight magnesium alloy and flame-retardant ABS plastic with an IP65 rating, making it resistant to dust, water jets, and salt corrosion—ideal for outdoor festivals and harsh environments.
· Smart Control: Supports RDM, ArtNet, and sACN protocols alongside standard DMX. Features a 2.4" LCD screen that remains accessible even when powered off for easy addressing.
· Intelligent Cooling: Integrated silent fan system with thermal management protects the laser source, automatically adjusting speed to maintain optimal performance and extend lifespan up to 20,000 hours.
Specifications
LIGHT SOURCE
· Source: 260W Laser
· Color Temperature: 10,000K
· CRI: Ra > 70
· Average Lifespan: 20,000 hrs
OPTICS
· Beam Angle: 0.6° ~ 35°
· Output Luminance: 13,000 Lumens
· Aperture Diameter: 166mm
· Dual Frost Filters: Heavy frost + Light frost
EFFECTS
· Color System: CMY color mixing + Color wheel (19 colors + Open)
· Gobo System: Rotating gobo wheel (10 gobos + Open); Static gobo wheel (35 gobos + Open)
· Prism System: 4-facet linear prism + 6-facet linear prism; 3-facet, 4-facet, 5-facet, 6-facet, 8-facet, and 16-facet circular prisms
· Electronic Strobe: 0 ~ 25 Hz high-speed strobe
· Dimming: 0-100% Linear Dimming (Implied standard feature)
CONTROL & PROGRAMMING
· Control Protocols: Standard DMX512, RDM, ArtNet, sACN
· Control Channels: 29CH / 35CH
· Data Connections: 3-pin & 5-pin XLR In/Out
· Display: 2.4-inch LCD display (Menu accessible in power-off mode)
· Software Update: Via DMX signal
PAN/TILT MOVEMENT
· Pan: Infinite continuous rotation, 16-bit precision
· Tilt: 270° scan range, 16-bit precision
· Movement: High-speed, intelligent silent operation
CONSTRUCTION & COOLING
· Housing: Magnesium alloy frame + Flame-retardant engineering plastic
· Cooling: Intelligent silent fan system with variable speed control
· Protection: Salt-spray resistant coating
POWER SUPPLY
· Input Voltage: AC100V ~ 240V, 50/60Hz (Auto-ranging)
· Rated Power: 350W
· Thermal Protection: Automatic temperature monitoring to ensure longevity
ENVIRONMENT & PHYSICAL
· IP Rating: IP65
· Operating Temp: -25°C ~ 45°C
· Startup Temp: -20°C ~ 45°C
· Dimensions (LxWxH): 395 x 579 x 493 mm
· Net Weight: 30 kg
2-Year Manufacturer Warranty & Lifetime Technical Support
Guangzhou BTLProlight provides enterprise-grade warranty protection for the Bright Top 1950Z-IP (19×50W IP66 LED Wash/Beam), ensuring zero downtime for global concert tours, rental staging, and fixed architectural installations.
1. Comprehensive Warranty Coverage Details
2-Year Free Parts & Factory Warranty
During the first 24 months from the delivery date, any failure caused by manufacturing defects, LED engine issues, motor malfunctions, or mainboard circuitry is covered with 100% free original replacement components.
Lifetime Technical Maintenance
After the 2-year warranty expires, BTLProlight guarantees lifetime engineering consultation, remote diagnostics, and long-term spare parts supply at direct factory cost prices (no markup).
Fast-Track Global Air Express Delivery
We maintain a dedicated spare parts inventory for the 1950Z-IP. Critical replacement modules (power supplies, optical lenses, display boards) can be dispatched via international DHL/FedEx within 48 hours.
Free DMX Profiles & Firmware Updates
Complimentary access to the latest fixture profiles for GrandMA2, GrandMA3, Avolites, ChamSys, and Onyx. USB/RDM firmware upgrade packages are provided free of charge for life.
2. Step-by-Step Technical Support & Claim Process
Send photos or a short video showing the fixture error code, along with your order or serial number.
Our lighting engineers analyze the issue within 24 hours and identify the exact component needed.
Original plug-and-play spare parts are packed and shipped via express courier with tracking details.
We provide step-by-step video tutorials and 1-on-1 engineer assistance to complete easy modular replacement.
Need Immediate Technical Assistance or Spare Parts?
Connect directly with BTLProlight senior technical support team for fast troubleshooting, warranty verification, and fixture profile assistance.
