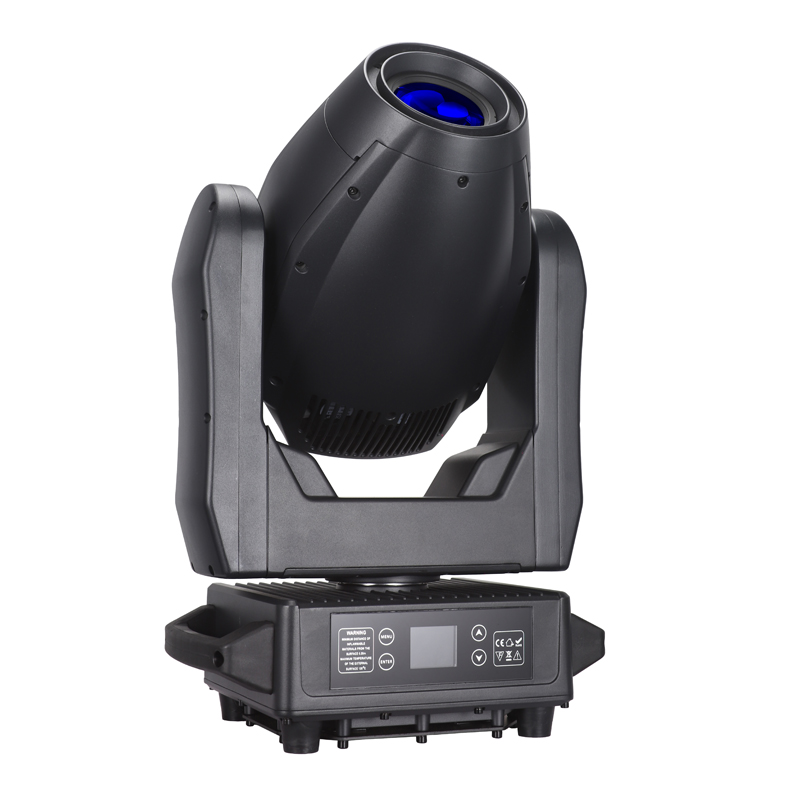

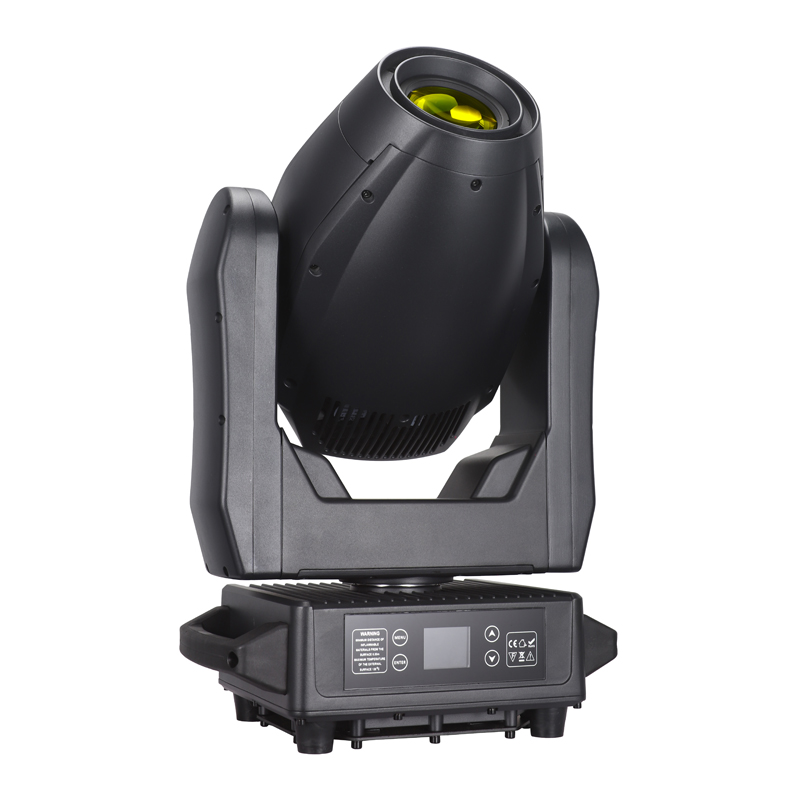

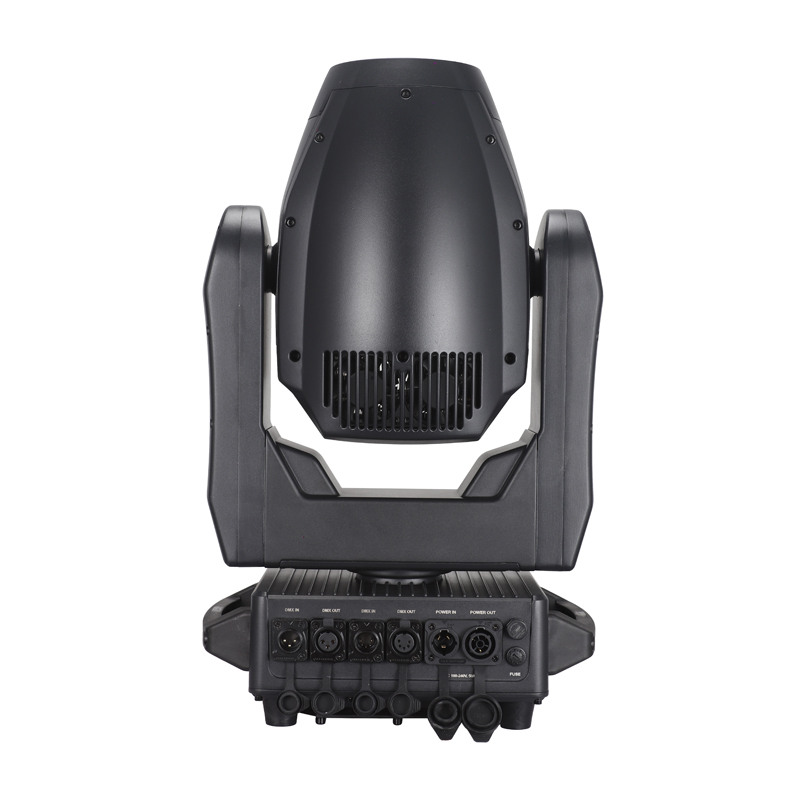

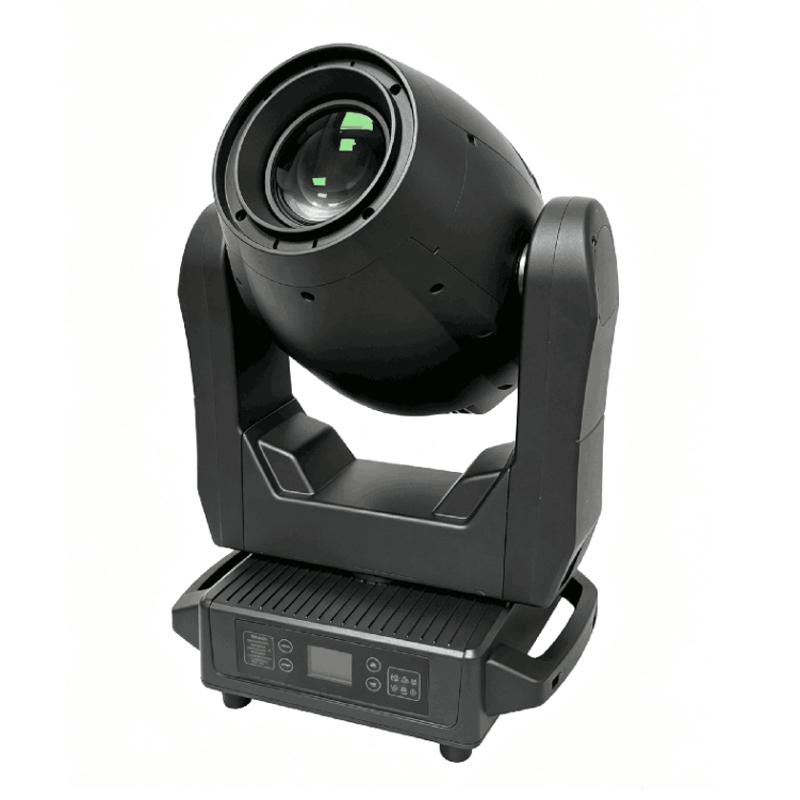

Bright Top CMY400-IP: 400W IP65 Outdoor LED CMY+CTO Spot Moving Head Light | BTLProlite
$530.00
Bright Top CMY400-IP is a professional 400W IP65 outdoor LED moving head spot fixture featuring linear CMY+CTO color mixing, 6°-30° motorized zoom, dual rotating prisms, rotating glass gobos, and RDM control for outdoor festivals and touring stages.
Bright Top CMY400-IP: 400W IP65 Outdoor LED CMY+CTO Spot Moving Head Light
Powered by a high-output 400W imported LED module engine (8000K, CRI>95), the Bright Top CMY400-IP delivers full Linear CMY + Independent CTO color mixing, seamless 6°–30° motorized linear zoom, dual rotating prisms, and heavy-duty IP65 all-weather protection, setting a new benchmark for outdoor touring concerts, stadium productions, and high-end mega clubs.
Engineering Highlights & Creative Effects Engine
Touring-Grade Construction & IP65 Protection
1. Rugged IP65 All-Weather Die-Cast Housing
Precision engineered with high temperature resistant flame-retardant housing and silicone sealing gaskets, preventing rain, dust, and sand infiltration for outdoor festivals.
2. Intelligent Axial Fan Cooling & Thermal Protection
Equipped with high-efficiency axial fans and real-time electronic temperature monitoring. Automatically shuts off lamp power upon overheating failure to safeguard the LED emitter.
3. Professional Control Protocols & RDM Support
Supports standard DMX512 (21CH / 23CH modes), RDM bidirectional addressing, dial address code setting, master-slave, and online software updates.
4. 2-Year Factory Warranty & Fast Global Support
Backed by BTLProlight 2-year warranty with modular plug-and-play replacement components and lifetime professional technical support.
Technical Specifications
·This high-output 400W IP65 LED moving head spot fixture is engineered for large-scale concerts, touring productions, TV studios, theme parks, and high-end nightclub applications. Featuring linear CMY+CTO color mixing, 6°–30° motorized zoom, high-efficiency axial fan cooling, and rugged all-weather protection, it delivers unparalleled aerial effects and punchy mid-air visuals.
Extreme Brightness & High CRI: Utilizes an imported 400W LED module engine (8000K, CRI>95) to produce crisp, high-definition beams and saturated projections.
Linear CMY + Independent CTO: Seamless CMY color mixing combined with linear CTO color temperature adjustment and 7 dichroic colors + open.
Motorized Zoom & Long-Throw Focus: 6°–30° smooth linear zoom and 4m–50m high-precision electronic focusing.
Versatile Effects Engine: Dual gobo wheels (7 rotating glass + 9 fixed metal), dual bi-directional rotating prisms (3-facet + 5-facet), and independent frost filter.
Precision 16-Bit Movement: 540° pan and 270° tilt with high-speed silent motors and photoelectric auto error correction.
All-Weather IP65 Durability: High-temperature engineered casing with IP65 ingress protection, axial fan cooling, and electronic overheat protection.
· Source: Imported New 400W LED Module Engine
· Color Temperature: 8000K
· CRI: Ra > 95
· Average Lifespan: 50,000 hrs
· Beam Angle: 6° ~ 30° Motorized Linear Zoom
· Focusing: Linear Adjustment from 4m to 50m
· Frost: 1 Independent Frost Filter
· Color Mixing: Linear CMY Color Mixing System + Independent Linear CTO
· Color Wheel: 7 Colors + CTO + Open (Half-color function)
· Rotating Gobos: 7 Glass Gobos + Open (Bi-directional rotation)
· Fixed Gobos: 9 Fixed Patterns + Open
· Prism System: 3-Facet Prism + 5-Facet Prism (Independent forward/reverse rotation)
· Strobe: 0 ~ 30 times/sec High-Speed Strobe with Macro Functions
· Dimming: 0-100% Linear Dimming
· Control Protocols: DMX512, RDM Function, Master-Slave, Self-Propelled
· Channel Mode: 21CH / 23CH
· Display: LCD Display
· Software Update: Via DMX Signal / Dial Address Code
· Pan: 540° (16-bit precision scan) with electronic error correction
· Tilt: 270° (16-bit precision scan) with electronic error correction
· Input Voltage: AC110V – 240V, 50/60Hz
· Power Consumption: 430W
· Cooling: Axial Fan Enhanced Cooling
· Thermal Protection: Electronic temperature control overheat protection with automatic power-off
· Protection Level: IP65 Waterproof
· Working Environment: -20°C ~ +40°C
· Housing: High Temperature Resistant Engineered Plastic
